Product Overview

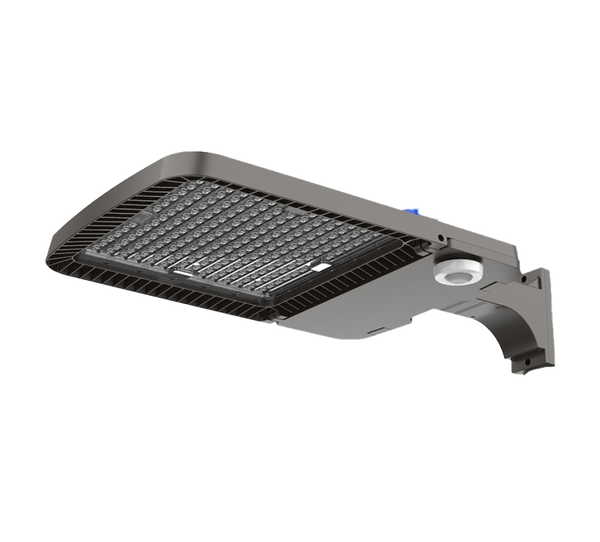

The Lumerica DP-A-VAL 180A is a 180-watt LED fixture from the DP-A-VAL parking lot light series, built to replace mercury vapor, metal halide, and high-pressure sodium lights on existing poles and wall mounts.
Output is rated at 26,100 lumens with an efficacy of 145 lumens per watt, a 5000K color temperature, and a CRI of 75. A Type III beam spreads light across a wide, asymmetric pattern suited to open ground-level areas. The universal driver runs on 110 to 277 VAC at 60 Hz, covering 120V, 208V, 240V, and 277V services without a separate transformer, and the fixture carries a 50,000-hour rated life with ETL and DLC certification.
The fixture ships with a toolless driver access panel and a rotatable lens, and it pairs with a range of mounting accessories, including slipfitter, round or square pole mount, and trunnion mount, sold separately to match the pole or wall already in place.
This 180-watt model is built for mounting heights of roughly 16 to 40 feet, suited to parking lots, driveways, yards, paths, and other open areas that need consistent, even coverage from a single pole or wall-mounted head.
Installation and wiring should be handled by a qualified electrician in accordance with local electrical codes. Power must be shut off before and during installation or maintenance, the fixture ground wire must connect to a grounded equipment-grounding conductor, and the supply voltage must match the fixture's rated input before energizing. The lens should be inspected and cleaned periodically with a damp, non-abrasive cloth to maintain light output.
The DP-A-VAL 180A carries a 5-year limited warranty, and a full installation manual and spec sheet are available for reference before ordering or during setup. In stock and ready to ship from Indiana Radiant; call for help sizing the right model and mounting accessory for your site.
Specifications
| Power | 180 Watts (adjustable 75-180 W) |
| Light Output | 26,100 Lumens |
| Electrical - Input Voltage | 110 to 277 VAC |
| Electrical - Input Frequency | 60 Hertz |
| Color Temperature (CCT) | 5,000K |
| Efficacy | 145 Lumens per Watt |
| CRI | 75 |
| Beam Angle | TYPE III |
| Weight | 8.75 lbs. |
| Dimensions (Length x Width) | 22.62" x 11.24" |
| Mounting | Post or Wall (typ. mounting height 16' to 40') |
| Coverage / Application | Parking lot and open-area lighting (parks, fields, yards, paths, driveways) |
| Rated Life | 50,000 hours |
| Certifications | ETL, DLC* |
| Housing | Self-cleaning housing and rotatable lens, toolless driver access |
Cross-Reference & Fitment
| Alternate part numbers | DP-A-VAL 180 |
Documents
- dp-a-val-180a-web-1.pdf (spec)
- dp-a-val-180a-web-2.pdf (spec)
