Product Overview
The LP-309 forms and manages the Zigbee mesh network that links compatible fixtures for group dimming, scheduling, and remote on/off control, replacing the wired lighting control panel a facility would otherwise need to run those functions.
Fits the Lumerica DU-A-NHB, DU-A-CHB, and DU-A-EHB high-bay fixture series (100-600 W) as an optional Zigbee mesh accessory; see Fitment below for the full model list.

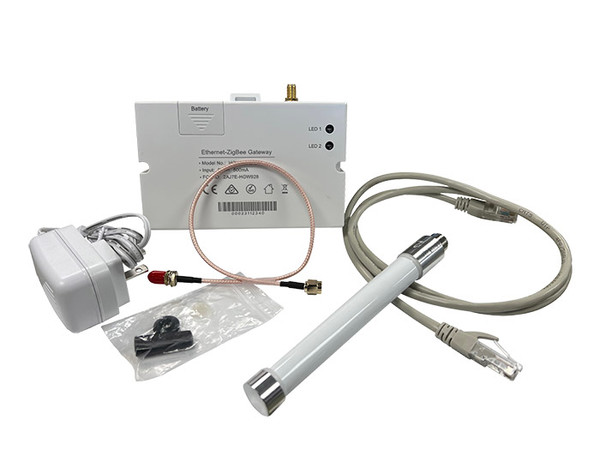

Ships as a standalone unit ready to pair with Lumerica's Zigbee-capable high-bay fixtures, ready to power on and join a mesh network out of the box.
Replacing this part: when adding or replacing a gateway on an existing mesh network, disconnect power to the fixtures being paired before making any wiring or control connections, and have a qualified electrician verify the mesh configuration once complete. See the Lumerica DU-A Series Brochure for wiring and setup guidance.
Cross-Reference & Fitment
| Fits | DU-A-NHB 100, DU-A-NHB 150, DU-A-NHB 200, DU-A-NHB 240, DU-A-NHBF 240, DU-A-CHB 200, DU-A-CHB 240, DU-A-CHB 320, DU-A-CHB 320S, DU-A-CHB 400, DU-A-CHB 500, DU-A-CHB 600, DU-A-EHB 100, DU-A-EHB 145, DU-A-EHB 180, LM-BYS-B5-100, LM-BYS-B5-145, LM-BYS-B5-180, DL-A-ALHB, DV-A-STP |
