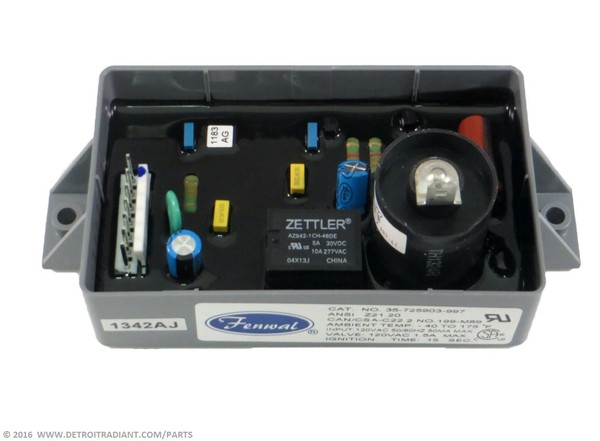

MARK 10DX-117 120V Circuit Board

The MARK 10DX-117 circuit board is a 120V ignition control board for Re-Verber-Ray PH Series (Patio-Pal) and DR series radiant heaters. Re-Verber-Ray's primary catalog number for this board is 35-725903-997; MARK 10DX-117 is an alternate designation, and 24KU46 is a second alternate also catalogued for this board. The board takes in line voltage, manages the ignition trial, and monitors the flame signal to open or close the gas valve. Order the board under either 35-725903-997 or MARK 10DX-117.

Fits Re-Verber-Ray PH Series (Patio-Pal) and DR series heaters at 120V; confirm voltage and series before ordering. See the Fitment panel for the full model list. No supersession data is available for this part number. Search keywords associated with this board also reference Fenwal and DR ignition control module nomenclature, suggesting a possible OEM cross-reference, but no confirmed OEM manufacturer part number was found in available documentation.

The board ships as a single unit. Its companion wiring harness is DRWH-120.

When replacing this board, disconnect power before beginning any work. Match wiring connections from the old board to the new unit before energizing the heater. No install sheet was available at time of publication; consult the series manual or contact Re-Verber-Ray technical support for wiring diagrams. Current processing time for this part is 3-5 business days.

Specifications

Cross-Reference & Fitment
