Product Overview
The PH-BKT is Re-Verber-Ray's adjustable wall/ceiling mounting bracket kit for DSC Series patio heaters. It sets the heater at any fixed angle between 0° and 30° from horizontal, adjustable in 1 in. (25.4 mm) extension intervals via the connecting arms. Extension runs from a minimum of 9 in. (228.6 mm) for non-combustible mounting up to a maximum of 23.04 in. (585.22 mm), with 17.49 in. (444.25 mm) minimum at 0° and 20.19 in. (512.83 mm) minimum up to the 30° max, covering most wall and ceiling offsets on DSC-series installs without custom hardware. A stainless steel version, PH-BKT-SS, covers the same fitment for coastal or high-moisture installs.
Fits the DSC Series patio heater family, including DSCD and DSCS units; see Fitment below for the full list.

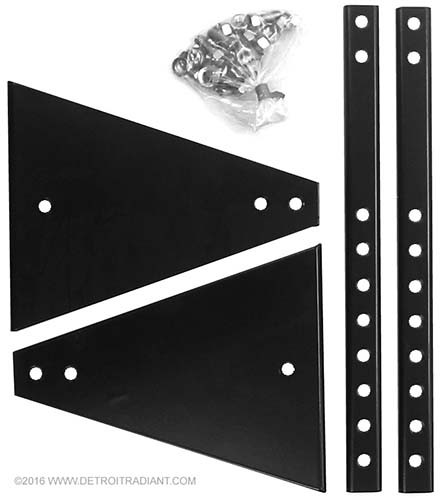

Ships complete: (2) wall brackets, (2) connecting arms, and (10) bolts, nuts, and lock washers, plus its own instruction sheet (P/N PH-BKT).
Replace a damaged, bent, or missing bracket kit with the PH-BKT (or PH-BKT-SS for a stainless finish) rather than reusing worn hardware, since clearances to combustibles depend on the mounting angle holding true. Before installing or replacing: shut off the gas supply, disconnect electrical power to the heater, and verify the mounting angle and hardware against the installation sheet, with a qualified technician confirming clearances and operation before returning the heater to service. Full instructions: PH-BKT installation sheet.
Specifications
| Compatibility | For use with DSC Series heaters; contact factory for instructions on PH Series Patio Heater use |
| Kit Contents | (2) Wall Brackets, (2) Connecting Arms, (10) Bolts, Nuts & Lock Washers |
| Mounting Angle Range | Adjustable between 0° and 30° from horizontal; must not exceed 30° or damage to egg crate can occur |
| Adjustability Increment | 1 in. (25.4 mm) intervals when installed with connecting arms |
| Minimum Bracket Extension (non-combustibles only) | 9 in (228.6 mm) |
| Minimum 0° Mounting Bracket Extension | 17.49 in (444.25 mm) |
| Minimum Angle Mounting Bracket Extension (up to 30° max) | 20.19 in (512.83 mm) |
| Maximum Mounting Bracket Extension | 23.04 in (585.22 mm) |
| Mounting Height Requirement | DSC Series heater must be installed 8 feet above the finished floor |
| Clearance to Combustibles at 0° Mounting Angle | Sides 18 in (458mm); Top 13 in (331mm); Below 48 in (1220mm); End(s) 12 in (305mm); Back N/A; Front N/A |
| Clearance to Combustibles at 30° Mounting Angle | Back 18 in (458mm); Top 18 in (458mm); Below 40 in (1016mm); End(s) 12 in (305mm); Front 36 in (915mm); Sides N/A |
| Mounting Options | Wall or ceiling mount configurations supported |
Cross-Reference & Fitment
| Fits | DSC Series, DSCD series, DSCS series, PH Series, DSC series patio heaters |
