Product Overview

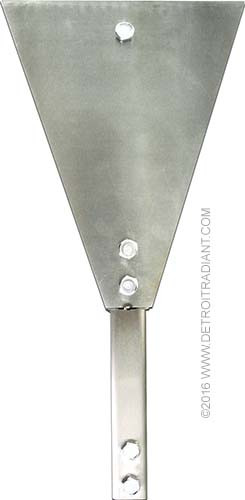

The PH-BKT-SS is a pre-set adjustable wall/ceiling mounting bracket for the Re-Verber-Ray DSC series of high intensity infrared patio heaters, built in stainless steel to match the -SS housing option. It sets to any angle between 0° and 30° from horizontal, letting the installer dial in aim and mounting height for the space. The bracket does the aiming work for the heater: it holds the fixture at the wall or ceiling and lets the installer lock in the tilt angle that gets the infrared pattern onto the patio or deck below, rather than out at the horizon. Because mounting height and angle set both the heat pattern and the coverage footprint, getting this right at install matters as much as the heater's BTU rating.
Fits the DSC series patio heater family, including the DSCD and DSCS sub-series; see Fitment below for model-level detail.
It ships as a bracket kit only, with no heater or hardware for other series included.
When replacing a mounting bracket, shut off gas and disconnect power to the heater before removing it, and verify the new bracket's angle setting and hardware against the heater's installation sheet. Have a qualified technician confirm heater operation and aim after remounting.
Specifications
| Mounting Angle Range | Pre-set 0 deg to 30 deg from horizontal, adjustable |
| Mounting Surface | Wall or ceiling mounting kit |
| Material (SS variant) | 304 Series stainless steel (inferred from Re-Verber-Ray -SS suffix convention on PH series housing; not confirmed on this specific bracket's own sheet) |
Cross-Reference & Fitment
| Fits | PH Series, PH-28, PH-28-SS, PH-31, PH-31-SS, PH-34, PH-34-SS, DSC Series patio heaters, DSCS Series, DSCS-31N, DSCS-31P, DSCS-34N, DSCS-31N-SS, DSCS-31P-SS, DSCS-34N-SS, DSCD Series, DSCD-31, DSCD-31-SS, DSCD-34, DSCD-34-SS, DSC series patio heaters |
