Product Overview

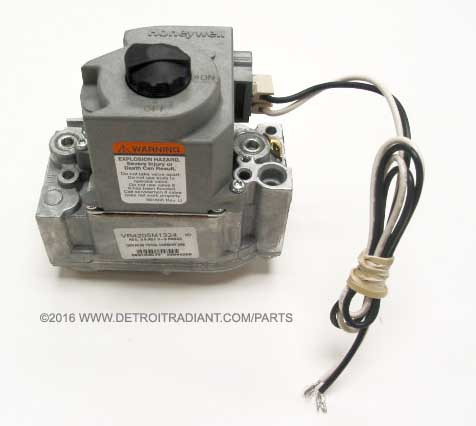

The VR4205M-2926 is a Honeywell 120V natural gas valve, cataloged as Re-Verber-Ray part TP-107, factory set to 3.5". This listing also carries the numbers VR4205M-1324 and 4255071 alongside VR4205M-2926; check the number on the unit's dataplate against the installation sheet before ordering, since terminal wiring changes with the 36E-to-VR conversion. The valve controls natural gas flow to the burner assembly, opening on a call for heat from the heater's control circuit and closing to shut off gas when the call ends or on a safety fault.
It fits DTH(S) 125N-3 and DBS models directly and cross-applies to the broader DTH-3/DTHS-3/DX/DX2/DES/XTS/CX/LS/AG1/RH family covered by the 36E-to-VR conversion; see Fitment below for the full model list. It supersedes the earlier 36E36A-231 valve (set at 3.8") and the 36E36A-246 natural gas valve.
It ships as the valve body only, with no fittings or mounting bracket included; the original bracket and fitting hardware from the old assembly carry over for reuse.
Replacing this part means converting from a 36E-style valve to the VR series: shut off the gas supply and disconnect electrical power to the heater before starting, remove the control box cover, group and rewire the terminals per the conversion diagram, then restore power and gas and check every connection for leaks. This work must be performed by a qualified service person; improper installation, adjustment, or service can cause property damage, injury, or death. See the 36E-to-VR valve conversion instruction sheet for the full procedure.
Specifications
| Gas Type | Natural Gas |
| Voltage | 120V |
| Factory Pressure Setting (Natural Gas) | 3.5 in. w.c. (replaces prior 36E36A-231 valve, which was set at 3.8 in.) |
| Body Pattern / Pipe Connections (VR4205 series, OEM cross-ref) | Straight-through body; 1/2 in. NPT inlet and 1/2 in. NPT outlet |
| Supply Voltage / Frequency (VR4205, OEM cross-ref) | 120 Vac, 60 Hz |
| Current Draw (VR4205, OEM cross-ref) | 0.1A |
| Thermostat Heat Anticipator Setting (VR4205, OEM cross-ref) | 0.1A |
| Gas Capacity (VR4205 series, OEM cross-ref) | Up to 200 cfh on natural gas |
| Ambient Temperature Range (Suffix M, OEM cross-ref) | -40°F to 175°F [-40°C to 79°C], standard-opening regulator |
| Approvals (VR4205 series, OEM cross-ref) | AGA design certificate UP-70-57A; CGA design certificate 1029-CC-8375; Australian GA certificate 4214 |
Cross-Reference & Fitment
| Replaces | 36E36A-231, 36E36A-246 |
| Alternate part numbers | VR4205M-1324, 4255071 |
| OEM numbers | VR4205M-2926 |
| Fits | DTH(S) 125N-3, DBS, DTHS3, DTH-3, DTHS-3, DX, DX2, DES, XTS, CX, LS, AG1, RH |
Documents
- tp-107-install.pdf (install)
- tp-107-web-1.pdf (spec)
- tp-107-web-2.pdf (spec)
