Q309A-1970 Pilot Flame Detector Thermocouple

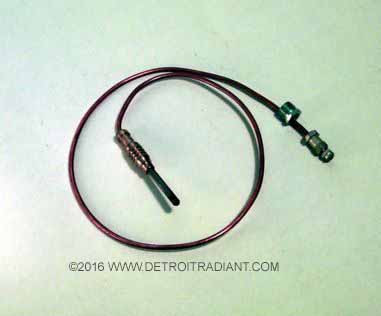

The Q309A-1970 is a pilot flame detector thermocouple for Re-Verber-Ray high-intensity heaters. It generates a small millivolt signal when heated by the pilot burner flame; that signal holds the gas valve thermocouple seat open, allowing main gas flow to the burner. If the pilot extinguishes, the thermocouple cools, the millivolt output drops, and the valve closes automatically, stopping gas flow to prevent an uncontrolled release. This part is discontinued; stock on hand reflects remaining available inventory.

It fits NT-2, PT-2, and American 13/17 Re-Verber-Ray high-intensity heaters; see the Fitment panel for the complete model list. Alternate catalog number 4414140 is listed on the manufacturer parts page as the same component, and the manufacturer lists it as a direct alternate for Q309A-1970 with no functional distinction noted. No documented supersession number has been identified. No third-party OEM cross-reference (Honeywell, Fenwal, or similar thermocouple manufacturer) was found in available sources for this part. If an OEM equivalent is needed, confirm against the heater's original installation documentation or contact Re-Verber-Ray at 800-222-1100 before ordering.

It ships as a single replacement thermocouple.

When replacing this thermocouple, shut off the gas supply and disconnect power to the heater before beginning work. Torque the thermocouple connection at the gas valve to the manufacturer specification; overtightening damages the valve seat. Have a qualified technician verify pilot flame operation and gas valve response before returning the heater to service. No install sheet is currently available for this discontinued part; consult the heater's original service manual or contact Re-Verber-Ray technical support at 800-222-1100.
