Product Overview

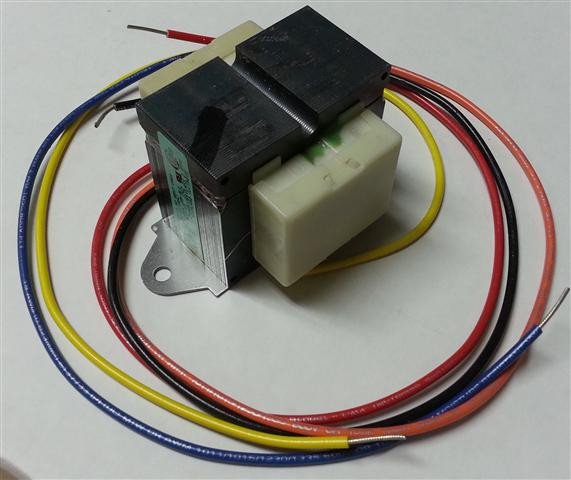

240001264 is a 208/230V primary to 24V secondary control transformer rated at 40VA. Inside RetroAire ductless and packaged HVAC equipment, it steps down incoming line voltage to the 24V class 2 control circuit voltage, powering the 24V control circuit, thermostat wiring, and control board so the controls and relays run on the low-voltage signal.
It fits the RetroAire ComfortWave (CAW), E-verter (UNHV), and VPRC/VPRH air handler and packaged unit series; see Fitment below for the full model list.
It ships as a standalone transformer, ready to wire into the unit's control circuit in place of the factory-installed part.
Shut off power to the unit at the disconnect before removing the old transformer, and match the wiring and mounting to the original before restoring power. Have a qualified technician verify control operation once power is restored. Reference the unit's data plate and the RetroAire series parts manual to confirm this is the correct control transformer for the model before ordering: CAW series parts manual.
Specifications
| Primary Voltage | 208/230V |
| Secondary Voltage | 24V |
| Frequency | 50/60Hz |
| Power Rating | 40VA |
Cross-Reference & Fitment
| Alternate part numbers | 240004611 |
| Fits | CAW08, CAW12, CAW18, CAW20, CAW33, CAW36, WLHV09, WLHV12, WLHV18, WLHV24, WLHV30, WLHV36, UNHV09, UNHV12, UNHV18, UNHV24, UNHV30, UNHV36, CAHV18, CAHV24, CAHV30, CAHV36, VPRC09, VPRH09, VPRC12, VPRH12, VPRC18, VPRH18, VPRC19, VPRH19, VPRC24, VPRH24, VPRC30, VPRH30, VPRC36, VPRH36 |
Documents
- 240001264-web-1.pdf (spec)
- 240001264-web-2.pdf (spec)
- 240001264-web-3.pdf (spec)
