Product Overview

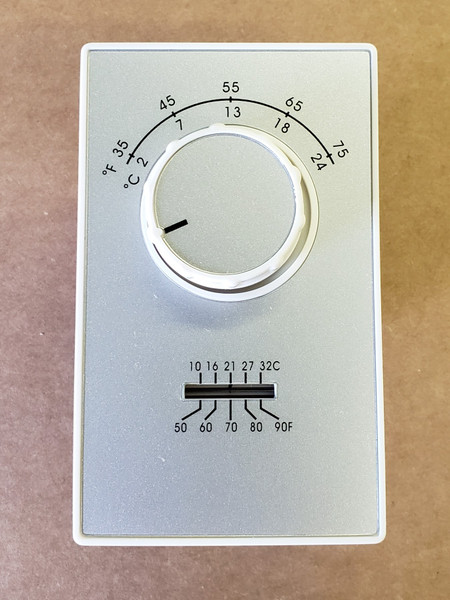

The Re-Verber-Ray ETD-5M is a two-stage, low-voltage wall thermostat that controls heat output on Re-Verber-Ray tube heater installations. It is factory set to a 35°F to 75°F control range with a fixed 2.0°F differential, built around a snap-action, double-pole switch rated 22 amps at 24/125/277 VAC. In operation, the thermostat opens on a rise in temperature and steps the heater between low and high firing stages, plus power, as the space approaches its set point, giving two-stage control rather than a simple on/off single-stage call for heat.
The ETD-5M fits Re-Verber-Ray tube heater installations and fits inside the F29GRD or MTGRD thermostat guard if a thermostat guard is desired.
It ships as a complete cover-and-base unit measuring 4.75" x 2.75" x 2.75". The unit is UL Listed and CSA Certified.
The thermostat wires through Power, Low, and High terminals per its wiring diagram; reference the specific heater's own installation and operation manual for field wiring at the heater end. Before removing an existing two-stage thermostat, shut off the heater's gas supply and disconnect power, then confirm wiring against both the heater's installation manual and the ETD-5M instruction sheet before restoring power, and have a qualified technician verify operation. Full specifications and the wiring diagram are in the Re-Verber-Ray ETD-5M instruction sheet (LSH010).
Specifications
| Temperature Range | 35° to 75°F (2° to 24°C) |
| Differential | 2.0°F (-16.5°C) Fixed |
| Operation | Two Stage, low voltage |
| Electrical Rating | 22 AMP at 24/125/277 VAC |
| Contact Action | Opens on rise |
| Dimensions | 4.75" x 2.75" x 2.75" |
| Certifications | UL Listed, CSA Certified |
| Switch Type | Snap action switch, double pole |
Cross-Reference & Fitment
| Alternate part numbers | ETD-5M1 |
| Fits | F29GRD, MTGRD |
Documents
- ETD-5M installation sheet (install)
