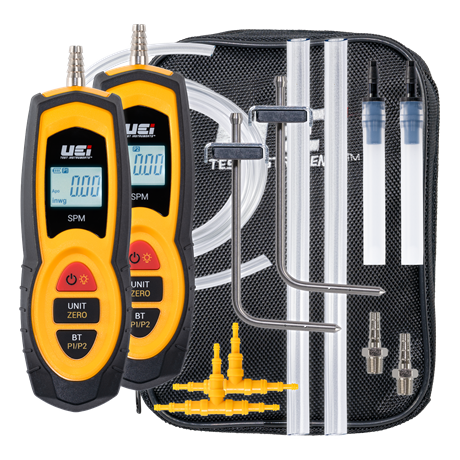

UEi SPMKIT Wireless Static Pressure Meter Kit

The SPMKIT is a wireless static pressure meter kit built around two compact wireless differential manometers, built for HVAC/R technicians testing static, gas, and draft pressures on HVAC/R equipment.

Measurement range runs to 80 inwg, with 6 user-selectable units and a zero function for quick baseline resets. The kit ships ready to test out of the box with:

• a soft carrying pouch/case
• clear flexible tubing with a brass fitting
• two step connectors with 3.15 in. tubing
• two 60 in. pressure tubing runs
• two magnetic static pressure probe tips
• two stepped T fittings

Readings push wirelessly to the free UEi LINK app, letting the tech read pressure from a screen instead of crouching at the unit, and a wireless connection button pairs the unit to the app in the field without extra setup steps. The backlit display shows a low-battery warning, and an auto power off function extends battery life between jobs. Rubber overmolding protects the housing on the truck and on the job, and the built-in magnetic mount holds the unit to ductwork or a cabinet for hands-free operation while probing. The kit suits static pressure testing across filters, coils, and duct systems on furnaces, air handlers, boilers, heat pumps, and air conditioners, plus gas valve/manifold pressure checks and draft pressure testing on live systems. The SPMKIT carries a 1-year limited warranty, and an English data sheet and instruction manual are available from the manufacturer for full setup and operating steps.

Specifications

Cross-Reference & Fitment

Documents

• SPMKIT Data Sheet (spec)
• SPMKIT Manual (manual)
