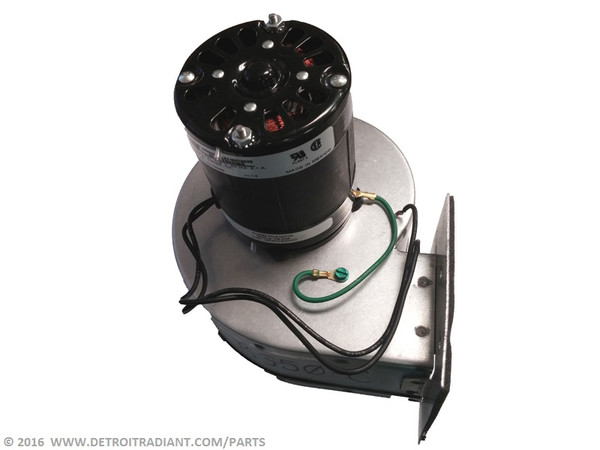

TP-3215 Inducer Fan Blower Assembly

The TP-3215 is a 1/15 hp inducer fan blower assembly for Re-Verber-Ray 175-200 MBH tube heaters, cataloged under manufacturer's number AMI-R23050-3BD00EN. The inducer draws combustion air into the burner and expels exhaust gases from the tube, holding the negative pressure the burner needs to fire safely and run at rated output.

It fits the 175-200 MBH DES3, DET3, DX3, DX3L, and HL3 series; see Fitment below for the full model list. On some models it is paired with a reducer or restrictor plate, Part No. TP-3216, depending on the heater's BTU configuration. Some older 175-200 MBH units instead used the TP-55A inducer, so confirm which assembly the unit has before ordering.

The TP-3215 ships as a complete assembly, ready to mount in place of the original unit.

Replacing this part: shut off the gas supply and disconnect power to the heater before removing the old inducer assembly. Confirm the replacement against the unit's installation manual, and have a qualified technician verify proper operation before returning the heater to service. See the DES3 series installation manual for reference: https://www.reverberray.com/wp-content/uploads/2016/05/liodes3_v814.pdf

Specifications

Cross-Reference & Fitment

Documents

• tp-3215-web-1.pdf (spec)
