Product Overview

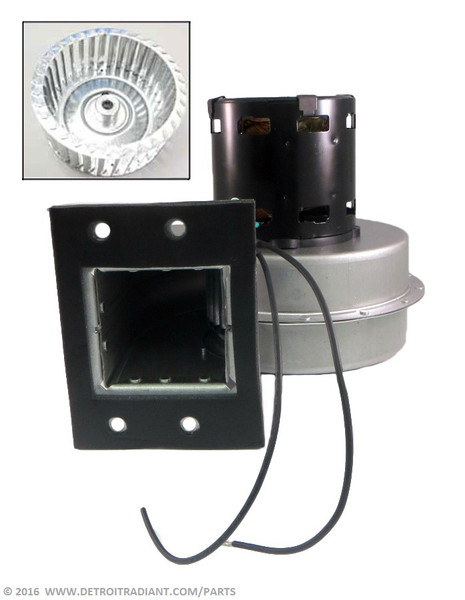

The TP-55A is a complete fan/blower (inducer) assembly rated 1/20 hp, 120V, for Re-Verber-Ray tube heaters, also cataloged under alternate numbers 3326758 and 1FYA9. It uses the same motor as the standard TP-55 but pairs it with a different, Fergas-type wheel for higher efficiency; the two parts are physically similar but not a drop-in swap for each other. In the heater, the inducer fan pushes combustion air through the burner, maintaining the draft the ignition and flame-sensing controls depend on to run safely. A failed or weak inducer typically shows up as ignition lockouts, pressure switch faults, or the burner failing to start.
Fits the DX, HL, DET, DES, XTS, CL, CX, LD, RVA, AG, and RH tube heater families across their 40-150 MBH input ranges; see the Fitment panel for the full model list.
Ships as a ready-to-install complete assembly.
Confirm the heater's existing inducer is the TP-55A and not the standard TP-55 before ordering, since the wheel difference means the TP-55 cannot substitute for this part. Before replacing it, shut off the gas supply, disconnect power to the heater, and verify wiring and mounting against the unit's installation manual. Have a qualified technician confirm draft and ignition operation after the swap.
Specifications
| Voltage | 120V |
| Horsepower | 1/20 hp Inducer Assembly |
| Motor/wheel notes | Same motor as TP-55 but higher efficiency with a different (Fergas type) wheel; the TP-55 cannot substitute for the TP-55A fan blower |
| Gas type | N/A |
| Shipping method | UPS or USPS |
Cross-Reference & Fitment
| Alternate part numbers | 7021-6745, 3326758, 1FYA9 |
| Fits | CL, CL3, CX, CX3, DES, DES3, DET, DET3, DSRF, DSRL, DSRS, DTH(S)-2 40-100, DTH(S)-2 125-150, DTH(S)-3 125, DTH(S)-3 150, DX, DX2, DX3, DX3L, HL, HL2, HL3, LD, RH, XTS, XTS3, LS-40, LS-50, RVA, RVA2, AG1, AG2, MP3 |
